Non-electric twin-tank water softener
Continuous soft water for gravity-fed and vented systems

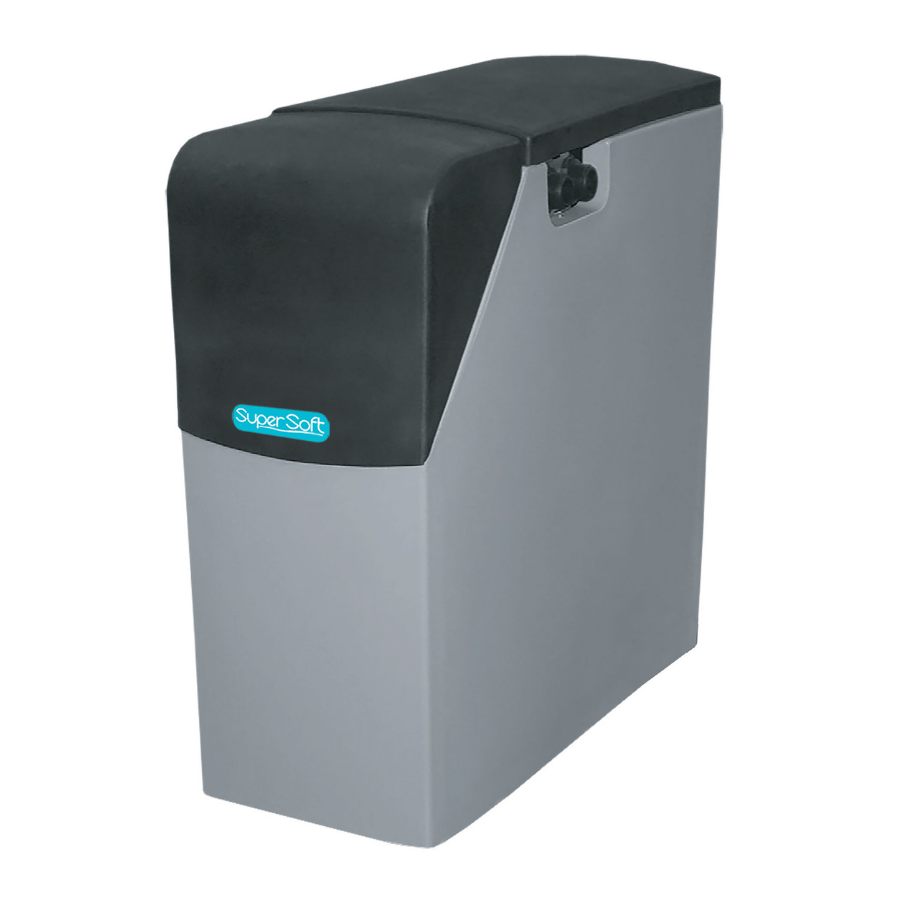

The Kinetico Supersoft HE combines a compact cabinet with efficient, non-electric operation. Kinetico identifies the HE as the Supersoft model for vented and gravity-fed plumbing systems, delivering softened water without electrical controls or interruptions during regeneration.
Proven Kinetico engineering
Reliable softening without electricity
The Supersoft HE uses water pressure to meter usage and control regeneration. It only regenerates after its calculated capacity has been used, helping to avoid unnecessary salt and water consumption.
- Designed for vented and gravity-fed plumbing systems
- Fine-mesh resin for effective hardness removal
- Compact cabinet measuring 495 × 205 × 475 mm at the base
- Reversible inlet and outlet arrangement for flexible installation
Continuous soft water
Twin tanks maintain the supply during regeneration.
Reliable and simple
Water-powered operation with no electrical controls.
2-year parts warranty
Backed by 2-year parts and 2-year labour cover.
Block or tablet salt
Use two 4 kg blocks or good-quality tablets.
Not sure how hard your water is?
Use our quick postcode checker to find your area's typical water hardness and help confirm the right softener setup.
Soft water around the clock
Twin tanks prevent interruptions
Conventional single-tank softeners cannot soften water while regenerating. The Supersoft HE automatically switches between two resin tanks, allowing one tank to remain in service while the other cleans itself.
This provides uninterrupted softened water for everyday household use, even when the system needs to clean and recharge one of its resin tanks.
Demand-led regeneration
Efficient by design
The system measures actual water use instead of regenerating on a fixed-day schedule. Each regeneration takes approximately 12 minutes and uses 0.3 kg of salt and 23 litres of water.
- No plug, electrical socket or electronic timer required
- Regenerates according to measured demand
- Two 4.5-litre resin tanks provide 9 litres in total
- Fine-mesh resin is packed into each media tank
Compact and installer-friendly
Flexible installation for modern homes
The inlet and outlet components can be reversed, allowing the connections to face the most practical direction. Kinetico recommends installation by a qualified installer or engineer.
- Operating pressure range of 0.83–8.3 bar
- Operating temperature range of 1.7–35°C
- ¾-inch inlet and outlet connections
- Minimum operating flow of 1.1 litres per minute
Salt and routine care
Simple day-to-day ownership
The front compartment accepts two 4 kg blocks of salt. Good-quality tablet salt can also be used, giving you flexibility when refilling the system.
Do not use rock or granular salt. Kinetico warns that its impurities can interfere with performance.
Choose the correct Supersoft
Kinetico Supersoft HE vs Supersoft HF
The two models share the same compact twin-tank design and regeneration efficiency. The important difference is system suitability and flow performance: Kinetico identifies the HE for vented or gravity-fed systems and the HF for pressurised systems.
Supersoft HE
25 L/minChoose the HE for a vented or gravity-fed plumbing system, where dependable performance at lower operating flow is important.
You are viewing the HESupersoft HF
33 L/minChoose the HF for a pressurised system, combi boiler or home where several bathrooms may be used at the same time.
View the Supersoft HF →Both models provide the same 12-minute regeneration time, salt efficiency and twin-tank build quality. Their key difference is how they handle flow and pressure.
| Model | Kinetico HE | Kinetico HF |
|---|---|---|
| Best suited to | Vented and gravity-fed systems | Pressurised systems, combi boilers and higher-flow homes |
| Height | 495 mm | 495 mm |
| Depth | 475 mm | 475 mm |
| Width at base | 205 mm | 205 mm |
| Resin per tank | 4.5 litres | 4.5 litres |
| Tank freeboard | Packed | Packed |
| Salt used per cycle | 0.3 kg | 0.3 kg |
| Regeneration time | 12 minutes | 12 minutes |
| Service flow rate at 15 psi drop | 25 L/min | 33 L/min |
| Service flow rate at 30 psi drop | 25 L/min | 33 L/min |
| Backwash rate | 1.8 L/min | 1.8 L/min |
| Resin type | Fine mesh | Fine mesh |
| Pipe connections - inlet/outlet | ¾ inch | ¾ inch |
| Operating pressure | 12–120 psi (0.83–8.3 bar) | 12–120 psi (0.83–8.3 bar) |
| Operating temperature | 1.7–35°C | 1.7–35°C |
| Minimum operating flow | 1.1 L/min | 1.1 L/min |
| Water used per cycle | 23 litres | 23 litres |
| Compatible salt | Block or good-quality tablet salt | Block or good-quality tablet salt |
| Warranty | 2 years parts, 2 years labour | 2 years parts, 2 years labour |
Official documentation
Kinetico Supersoft installation and user manual
Review installation, commissioning, maintenance and full technical guidance.
Helpful answers
Frequently asked questions
Is the Supersoft HE suitable for a gravity-fed system?
Yes. Kinetico identifies the HE model for vented systems, including gravity-fed plumbing arrangements.
Will it provide soft water while regenerating?
Yes. One resin tank remains in service while the other regenerates.
Does the Supersoft HE require electricity?
No. The system uses water pressure to meter usage and operate regeneration.
What salt can I use?
Use two 4 kg salt blocks or good-quality tablet salt. Do not use rock or granular salt.
How much installation space is required?
The cabinet measures 495 mm high, 205 mm wide and 475 mm deep at its base. Allow additional room for plumbing, salt and servicing.
Friendly expert support
Not sure whether you need the HE or HF?
Tell us about your boiler, plumbing and number of bathrooms. We will help you confirm the right Supersoft before you order.
