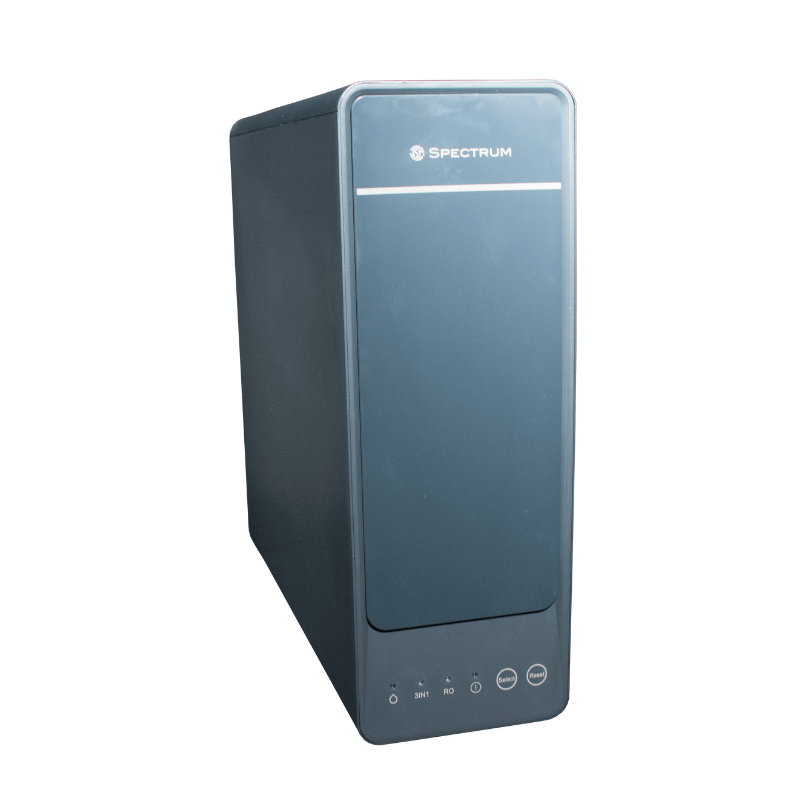

Spectrum Z1 Under Sink Reverse Osmosis System
The Spectrum Z1 is a compact, powered under-sink reverse osmosis system designed for homes and light-commercial applications where cupboard space, straightforward servicing and reliable purified-water production matter.
Fast dispensing without relying on a conventional storage tank.
Thin-film composite RO membrane for reduction of dissolved substances.
Efficient water recovery under suitable operating conditions.
A slim footprint designed to preserve valuable under-sink space.
High-Output RO Filtration in a Slim Cabinet
At only 130 mm wide, the Z1 combines a compact cabinet with an integrated booster pump and a rated product-water flow of 2 litres per minute. The system is designed for municipal water supplies and operates at a feed pressure of 1–4 bar.
- Integrated booster pump supports consistent RO production
- Push-fit connections simplify installation and servicing
- Automatic flushing helps maintain membrane performance
- Filter-life indicators show when cartridges require attention
How the Spectrum Z1 Filters Your Drinking Water
The Z1 uses two replaceable cartridges to provide four treatment stages. The Z1-C combines three functions in one cartridge, while the Z1-M contains the reverse osmosis membrane.
Sediment Filtration
Captures particulate material such as dirt, sand and rust before it reaches the finer filtration stages.
Pre-Carbon
Reduces chlorine before the RO membrane, helping protect the chlorine-sensitive membrane.
Reverse Osmosis
The thin-film composite Z1-M membrane reduces dissolved substances and microscopic impurities.
Post-Carbon
Final activated-carbon treatment adsorbs residual tastes and odours before water reaches the tap.
Designed for Straightforward Under-Sink Installation
The Z1 connects to the cold-water supply, a drain connection and a nearby electrical socket. A separate brushed stainless-steel drinking-water tap is supplied and requires a 12 mm mounting hole.
Important: The system must be connected to cold water only. Where incoming pressure exceeds 4 bar, the manufacturer specifies that a pressure-reducing valve should be fitted.
Twist-and-Lock Cartridges with Filter-Life Monitoring
The front-access cartridge arrangement is designed to make routine servicing straightforward. Indicator lights monitor the Z1-C and Z1-M filter life, while automatic rinse cycles operate at power-up, after extended production and after prolonged standby.
Typical service guide: 6–12 months
Typical service guide: 12–24 months
Actual cartridge life varies with feed-water quality, usage and operating conditions.
Spectrum Z1 RO System Specifications
| System type | Powered under-sink reverse osmosis system |
|---|---|
| Water supply | Municipal water |
| Maximum feed-water TDS | <500 ppm |
| Maximum feed-water turbidity | <1 NTU |
| Product flow | 2 L/min (120 L/hour / 2.88 m³/day) |
| Salt rejection | ≥93% |
| Recovery | ≥65% |
| Feed pressure | 1–4 bar |
| Feed temperature | 5–38°C |
| RO membrane | Thin-film composite membrane |
| Membrane rating | 3000 L/day |
| Sound level | ≤60 dB |
| Power used | 120 W |
| Electrical input | 100–240 V AC, 50/60 Hz, 3 A |
| Electrical output | DC 24 V, 5 A |
| Connections | 3/8" inlet; 1/4" RO outlet; 1/4" drain |

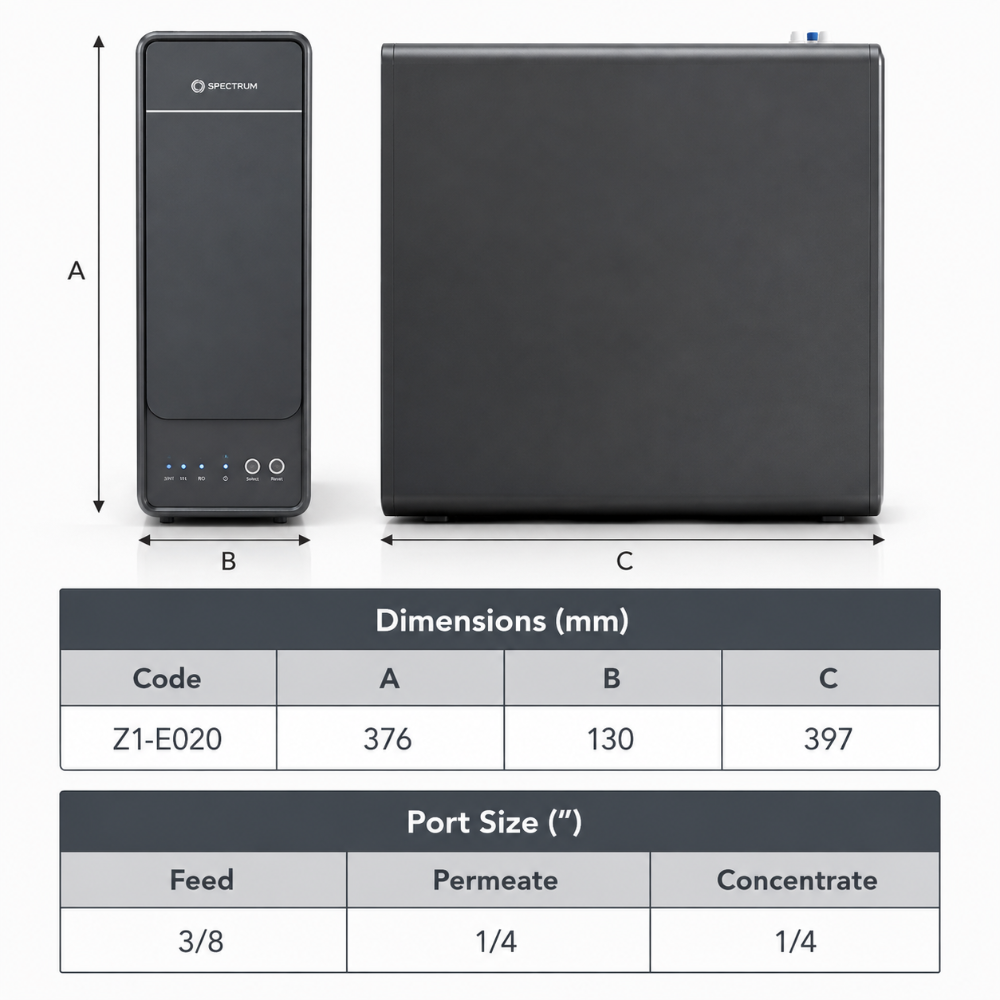

| Dimensions | 130 × 397 × 376 mm (W × D × H) |
| Gross weight | 15 kg |
| Warranty | 1 year from date of sale |
Product flow, rejection and recovery can vary with feed-water pressure, temperature and water conditions.
What's Included with the Spectrum Z1?
Manuals and Installation Information
Check the installation requirements and available cupboard space before ordering. The manufacturer's documentation covers plumbing connections, start-up, filter replacement and troubleshooting.
Choosing an Under-Sink Reverse Osmosis System?
Compare the Spectrum Z1 with other under-sink RO systems, or use our buyer's information to understand filtration, flow rate, installation and ongoing filter requirements.
Spectrum Z1 FAQs
Does the Spectrum Z1 need a storage tank?
The manufacturer specifies a 2 L/min product-water flow and the system is supplied as a compact powered RO module rather than a conventional RO system with a separate storage tank.
Does the Spectrum Z1 require electricity?
Yes. The Z1 contains an integrated booster pump and requires a nearby electrical supply. The specified electrical input is 100–240 V AC, 50/60 Hz.
How often are the Spectrum Z1 filters replaced?
The manufacturer's service guide recommends approximately 6–12 months for the Z1-C cartridge and 12–24 months for the Z1-M RO membrane. Actual life depends on water quality and usage.
What water pressure does the Z1 require?
The specified operating range is 1–4 bar. The manufacturer states that a pressure-reducing valve should be used where supply pressure exceeds 4 bar.
What comes with the Spectrum Z1?

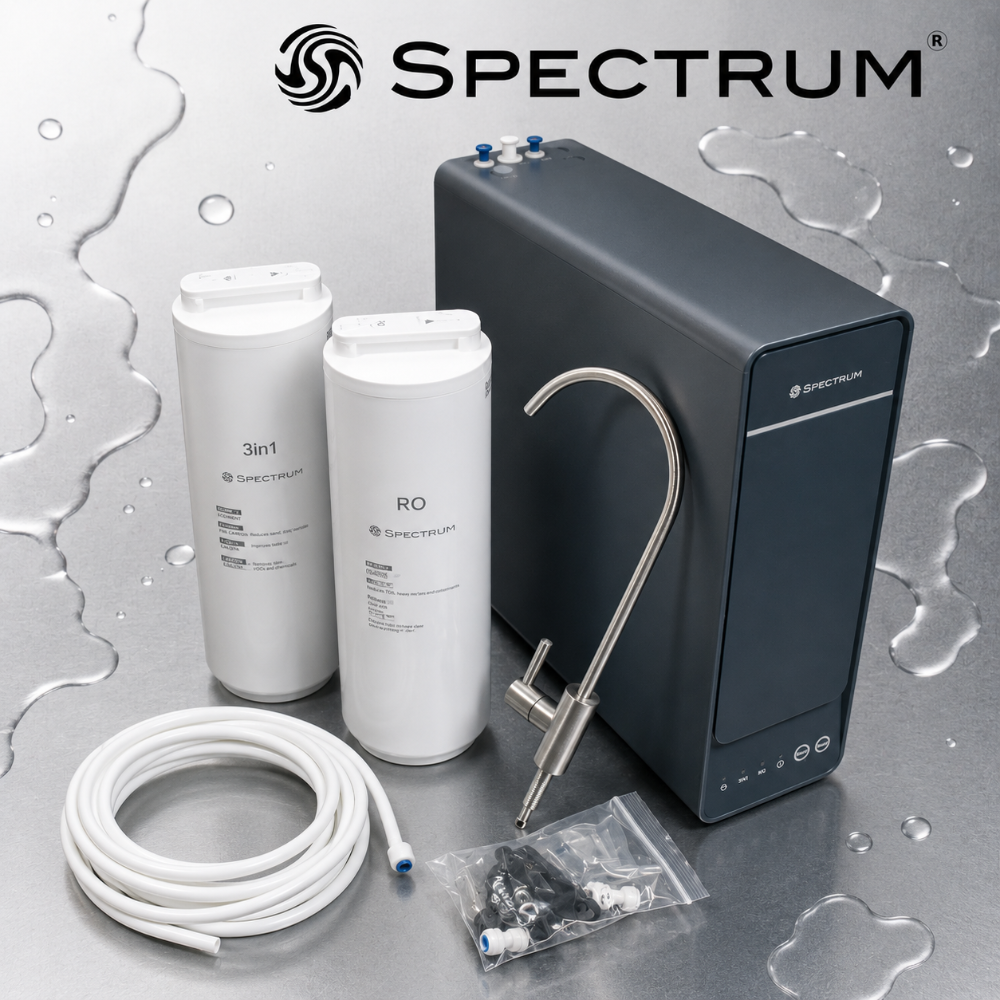

The system includes the RO module, Z1-C and Z1-M cartridges, power transformer, inlet valve, drain fittings, brushed stainless-steel drinking-water tap, connectors and installation tubing.
