Kinetico KF-B 3/4″–1″ · Reference 723717
Washable protection for the incoming mains water supply

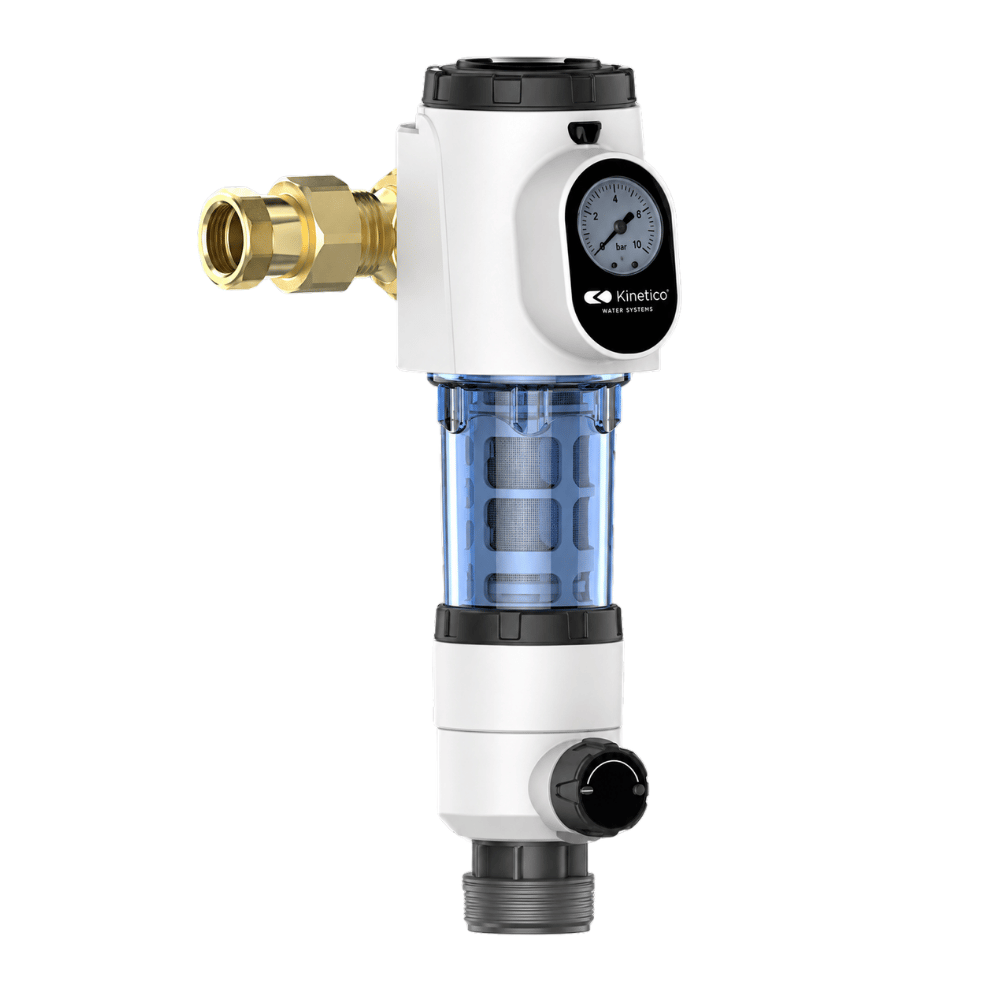

The Kinetico KF-B is a semi-automatic self-cleaning pre-filter with a 40-micron stainless-steel mesh, pressure gauge and both 3/4-inch and 1-inch union fittings. It is designed to intercept coarse particles before downstream water-treatment equipment.
Upstream equipment protection
Capture visible particles before they reach your softener
The 40-micron mesh provides a first barrier against larger suspended particles carried by the mains supply. Installed before a compatible water softener or other treatment system, it helps prevent coarse debris from reaching the downstream equipment.
- 40-micron stainless-steel mesh screen
- Silver-coated filtration mesh
- Built-in pressure gauge
- Brass head with union-nut connections
- For treated municipal mains water
40-micron meshCaptures larger suspended particles
Washable screenCleaned without removing the cartridge
Pressure gaugeIncluded for supply-pressure visibility
Two connection sizes3/4-inch and 1-inch unions supplied
Understand its purpose
A pre-filter—not a water softener or drinking-water purifier
The KF-B protects downstream equipment by screening larger particles. It does not remove hardness minerals, soften water, reduce dissolved salts or provide fine drinking-water purification.
What it does
Intercepts coarse suspended material using a washable 40-micron mesh.
Where it sits
Upstream of compatible water-treatment equipment on the municipal mains supply.
What it does not do
It does not replace a softener, fine filter, UV system or reverse-osmosis purifier.
Reusable filtration screen
Flush the mesh without dismantling the cartridge
Kinetico describes the KF-B as a semi-automatic self-cleaning pre-filter. The washable mesh is cleaned while retained inside the housing, avoiding routine cartridge removal for the normal flushing process.
The screen is reusable, but it is also available as a genuine replacement part if it becomes damaged or reaches the end of its serviceable life.
Match the connection to the demand
Published flow depends on the union size
Kinetico gives separate nominal flow figures for the two supplied connection sizes. Final suitability still depends on the property’s measured pressure, required peak flow and the complete plumbing arrangement.
Installation planning
Size and position the pre-filter properly
The manufacturer’s data sheet provides technical limits but not a complete installation schematic. A competent installer should determine the correct location, orientation, isolation arrangement and flushing discharge for the property.
Confirm the supply
The published specification is for municipal mains water within the stated pressure range.
Select the union
Choose the supplied 3/4-inch or 1-inch union fittings to suit the system design and flow requirement.
Allow service access
Keep the gauge, housing and flushing control accessible for inspection and maintenance.
Commission and inspect
Check all connections for leaks and confirm correct pressure and flow after installation.
Official technical data
Kinetico KF-B 3/4″–1″ specification
Manufacturer document
View the official Kinetico technical data sheet
Check the published dimensions, flow rates, pressure range, connection sizes and genuine spare-part references before installation.
Continue browsing
Pair the pre-filter with the right Kinetico system
Helpful answers
Frequently asked questions
What does the Kinetico KF-B pre-filter remove?
Its 40-micron stainless-steel mesh intercepts larger suspended particles and coarse debris. Kinetico does not publish it as a fine drinking-water purifier or chemical-contaminant filter.
Does it soften water or remove limescale?
No. The KF-B is a mechanical pre-filter. It does not remove hardness minerals or replace a water softener.
Can it be installed before a Kinetico water softener?
Yes, that is a typical purpose for a mains pre-filter: intercepting coarse material before downstream treatment equipment. The installer must still confirm compatibility, sizing and the correct plumbing arrangement.
Does the filter cartridge need regular replacement?
The stainless-steel mesh is washable and intended for reuse. Kinetico lists a genuine replacement mesh screen, reference 723723, for situations where replacement becomes necessary.
What connection sizes are included?
The KF-B is supplied with both 3/4-inch and 1-inch union-nut fittings. Kinetico publishes a flow of 3 m³/h with the 3/4-inch union and 4 m³/h with the 1-inch union.
What pressure range does it require?
The published pressure range is 1–10 bar. The installer should measure the actual supply and ensure every downstream component is also suitable for the operating pressure.
Is the automatic washing kit included?
No. Kinetico lists the automatic washing kit as an optional accessory under reference 723719. The standard KF-B is described as semi-automatic.
Is the supplied PDF an installation manual?
No. It is a technical and commercial data sheet. It confirms the product specification but does not provide a complete property-specific installation schematic.
Premium product support
Need to confirm the connection size or flow?
Tell us which Kinetico system you are protecting, your pipe size and the measured incoming pressure and flow. We will help you check whether the KF-B is appropriate before ordering.
