Where Does the O-Ring Go on a Whole House Water Filter?

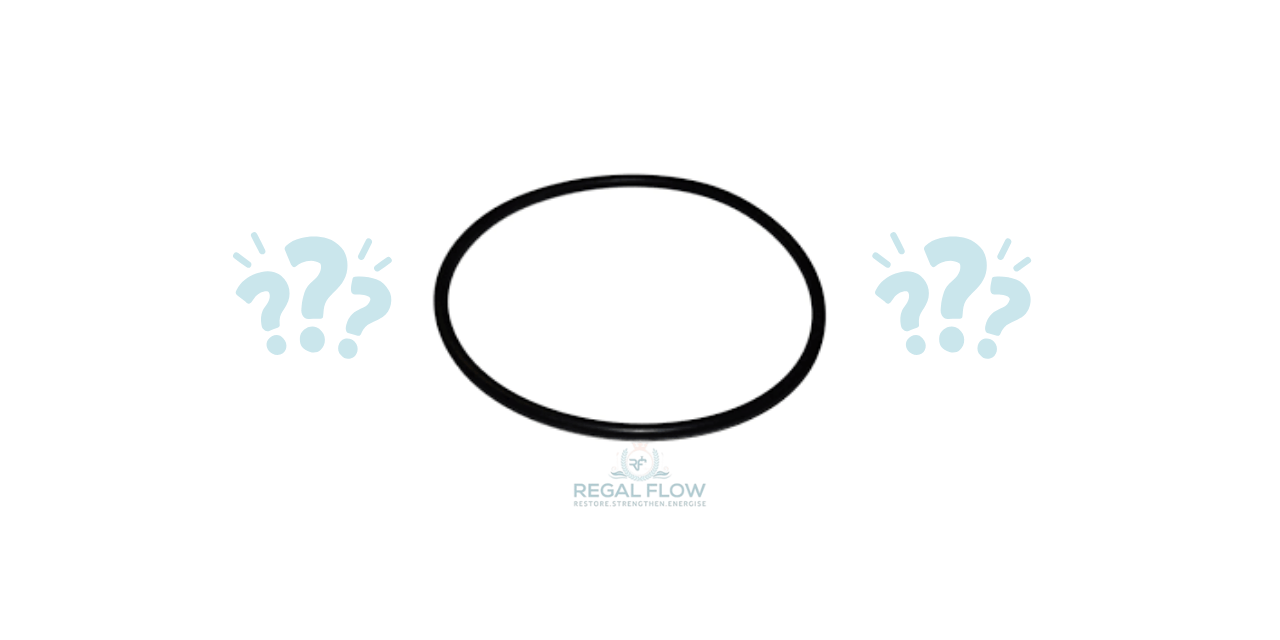

The O-ring in a whole-house water filter creates the watertight seal between the removable filter sump and the housing cap. On many systems, it sits in a recessed groove near the top of the sump, directly below the threads. However, housing designs vary, so the manufacturer’s diagram should always take priority.

The O-ring must sit flat, clean and evenly inside its designated groove. If it is twisted, stretched, damaged or installed in the wrong position, the housing may leak when the water supply is restored.

This guide explains how to locate, inspect and refit the seal safely. For wider servicing guidance, see our whole-house water filter maintenance guide.

O-Ring Placement: The Key to a Leak-Free System

The O-ring should not be placed loosely on the cartridge, wrapped around the housing threads or balanced on the upper edge of the sump. It belongs in the moulded groove specified by the housing manufacturer. When correctly installed, the seal is compressed evenly as the sump is screwed into the cap. This prevents pressurised water escaping through the joint. The O-ring does not perform the filtration or control water pressure; its job is to seal the housing.

Do not open a filter housing while it is pressurised. Isolate the water supply and release all internal pressure before attempting to loosen the sump.

Featured whole-home purifier

Aquaphor Viking Midi Pro Whole Home Water Purifier

A high-capacity point-of-entry filtration system designed to reduce chlorine, sediment and selected contaminants throughout the home.

Check Price →

The Function of the O-Ring

The Role of the O-Ring in Sealing the Housing

A whole-house filter housing normally consists of a fixed cap and a removable lower sump containing the cartridge. The O-ring forms a flexible seal between these two components. As the sump is hand-tightened, the O-ring is compressed against the sealing surfaces. This closes the small gap between the components while allowing the housing to be opened again for future cartridge changes.

The housing threads hold the components together, but they are not normally intended to create the watertight seal by themselves. Adding plumbing tape to the sump threads will not repair an incorrectly fitted or damaged O-ring.

Why a Properly Seated O-Ring Is Critical

An O-ring that is pinched, twisted or partly outside its groove cannot compress evenly. This can cause a slow drip or a more serious leak once the housing returns to full operating pressure. Dirt, old lubricant, cartridge debris or damage within the groove can also prevent the seal from sitting correctly. The groove and O-ring should therefore be inspected every time the housing is opened.

How to Find the O-Ring’s Home

The O-Ring Groove at the Top of the Filter Sump

On many common cartridge housings, the O-ring groove is positioned around the outside of the sump immediately below the threads. It appears as a smooth recessed channel sized to hold the seal securely. Some designs position the seal differently, including within the cap assembly. Before removing it, note its original position or check the exploded diagram in the instruction manual. Never force an O-ring into a groove simply because it appears to fit.

Use the exact replacement specified for the housing model. An O-ring with the wrong diameter or thickness may appear suitable but can fail to seal correctly under pressure.

Step-by-Step O-Ring Installation

Before opening the housing, place the filter into bypass if one is fitted and shut off the incoming water. Open a downstream cold tap to release pressure. If the housing has a pressure-relief button, press it carefully until the pressure has fully discharged.

If the sump remains pressurised or you cannot safely isolate the system, stop and contact a plumber or water-treatment professional.

Cleaning the Groove and the O-Ring

Remove the sump and lift out the O-ring carefully without using a sharp screwdriver or blade that could damage the seal or groove. Wipe the O-ring with a clean, lint-free cloth and inspect it for cuts, cracks, flattening, swelling, brittleness or permanent stretching. Clean the groove thoroughly to remove grit, old lubricant and other residue.

Replace the O-ring if it is damaged, deformed or no longer fits the groove securely. Keeping the correct spare seal with the filter wrench can prevent delays during future servicing.

Applying a Potable-Water-Compatible Silicone Lubricant

If the housing manufacturer recommends lubrication, apply only a thin, even film of potable-water-compatible silicone grease. The lubricant helps the O-ring seat without binding and can make future removal easier. Do not coat the seal heavily, and do not use petroleum jelly, Vaseline, general-purpose grease or petroleum-based oils. These products may cause compatible O-ring materials to swell, soften or deteriorate.

Lubricant does not repair a damaged seal and should never be used to compensate for an incorrect O-ring.

Correctly Seating the O-Ring Without Twisting or Stretching It

Place the O-ring into its groove and gently press around its full circumference. It should sit level without bulges, twists or sections protruding from the channel. Refit the sump and tighten it by hand unless the manufacturer gives different instructions. Do not use the housing wrench to force it tighter. Overtightening can over-compress the O-ring, make the sump difficult to remove and may contribute to leaks or housing damage.

Restore the water supply slowly and inspect the joint carefully. If a leak appears, isolate and depressurise the system again before making any adjustment. Never attempt to tighten or reposition the housing while it is under pressure.

Troubleshooting an O-Ring Problem

What to Do If Your O-Ring Is Cracked or Missing

Do not return the filter to service without the correct O-ring. Replace a missing, cracked, pinched, swollen or permanently flattened seal with the exact part intended for that housing. If a new seal still leaks, check that the groove is clean, the sump is not cross-threaded and neither sealing surface is cracked or damaged. Confirm that the cartridge is correctly positioned and is not preventing the sump from closing fully.

Once the housing remains dry under pressure, flush the new cartridge for the period specified by its manufacturer. This helps remove trapped air, loose carbon fines and manufacturing residue before normal use.

Conclusion

The O-ring normally sits in a dedicated groove between the filter sump and housing cap, but its exact position depends on the filter design. Safe servicing means isolating the water, releasing pressure, cleaning the groove, inspecting the seal and refitting it flat with only the manufacturer-approved lubricant.

Hand-tighten the housing, restore water slowly and check carefully for leaks. Correct placement protects against water escaping from the housing joint; filtration performance itself depends on the correct cartridge, suitable flow and timely replacement.
